VSign

Smart Vehicle Classification

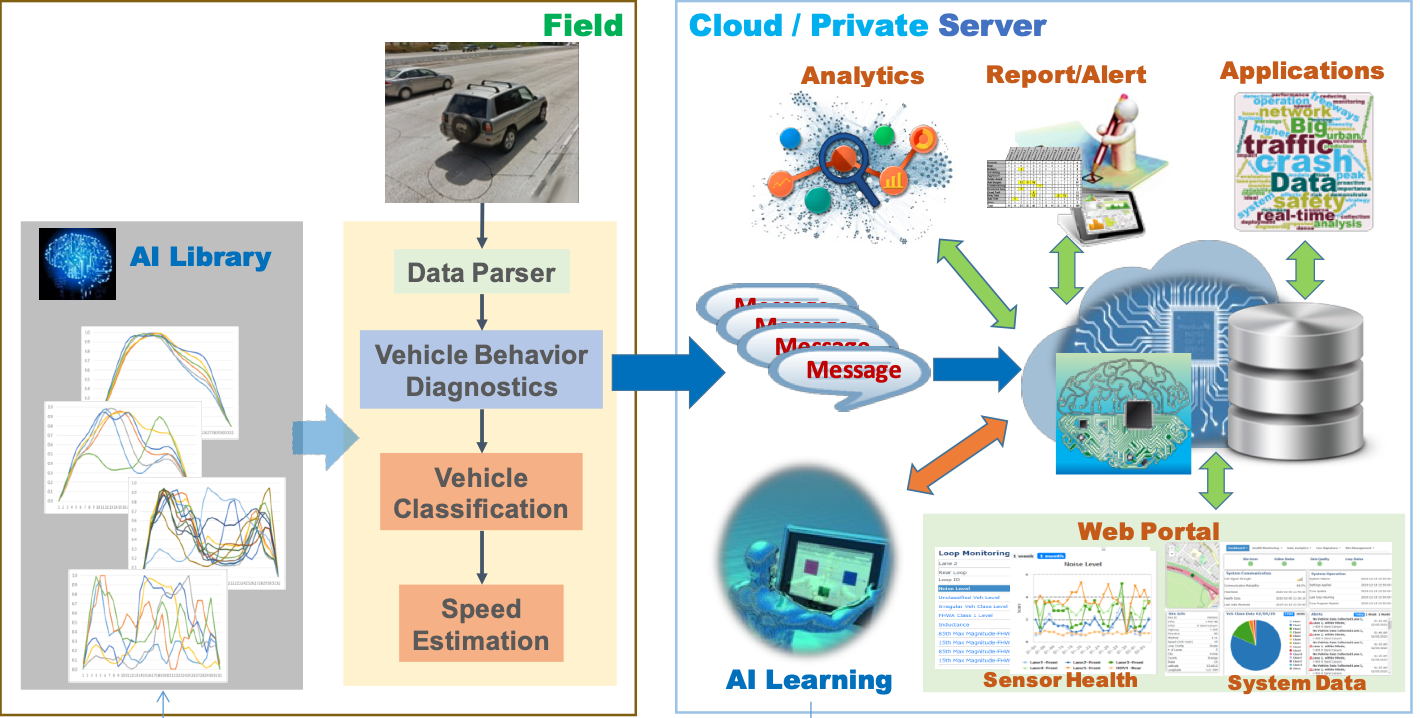

Using the inductive loop signature technology and AI-based big data analytics, the CLR VSign Classifier Solution provides reliable vehicle count, class, and speed data, leveraging existing infrastructure with highly customizable features to meet unique conditions.

Highlights

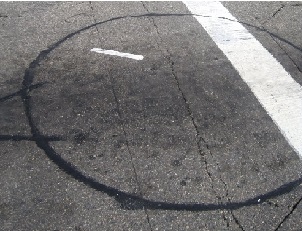

Single Loop

The system only requires a single loop per lane for system operation.

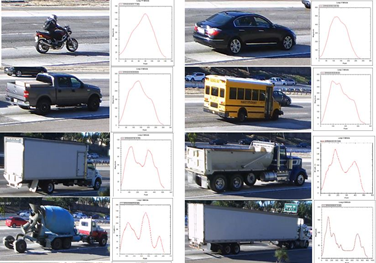

The system uses signature data for classification and speed measurement which is accurate even under low speed and high volume conditions.

Cost Effective

The system saves a lot of money by using existing loops and the system is very easy and quick to install.

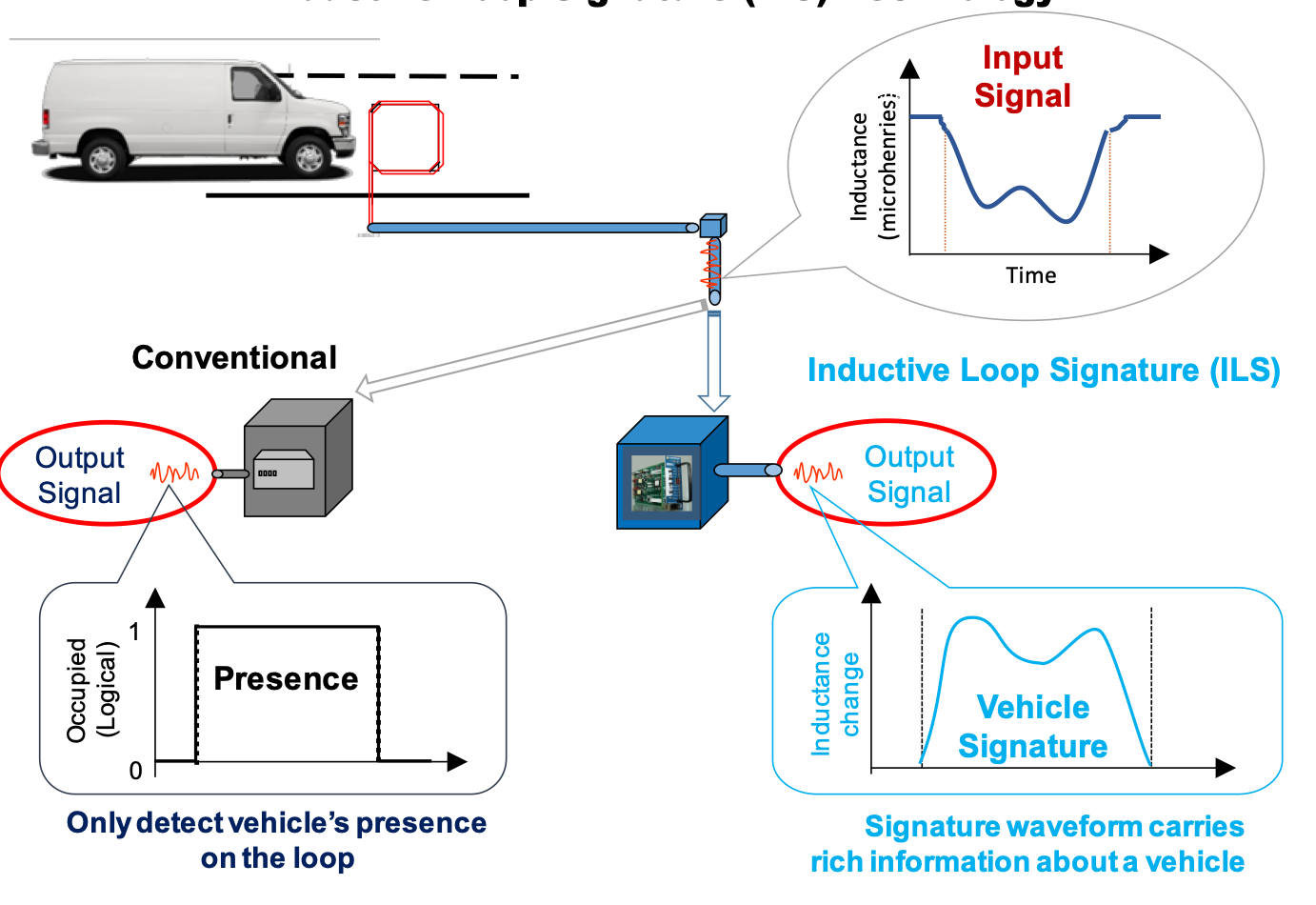

Inductive Loop Signature Technology

Just by swapping the detector cards, the continuous counting stations can be converted into vehicle classification stations that are capable of classifying vehicles into 13 different vehicle classes and providing accurate speed measurement and traffic count data based on a single loop per lane.

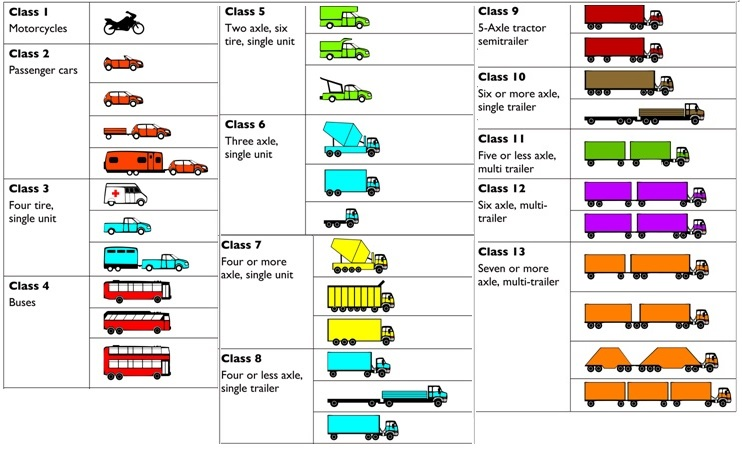

FHWA Vehicle Classification Scheme

The VSign® system has been tested successfully to provide more reliable and actionable traffic data under both normal and congested traffic condition than the conventional loop detection systems. Since individual vehicles are classified based on the FHWA 13-category classification, the vehicle composition can be better estimated along the corridors, and hence, the impact of truck flow can be better monitored in a cost-effective way.

Continuous Counting Station to Vehicle Classification Station

Just by swapping the detector cards, the continuous counting stations can be converted into vehicle classification stations that are capable of classifying vehicles into 13 different vehicle classes and providing accurate speed measurement and traffic count data based on a single loop per lane.

VSign Smart Vechicle Classification

The VSign® system provides count, occupancy, speed, length, and FHWA/HPMS vehicle class at per vehicle basis using existing (or new) single (or double) loops installed in the field. It can be easily deployed to the field by upgrading the existing counting or classification system with add-on VSign® hardware components.

Single Loop instead of Piezo Sensors

The system requires only one loop per lane for classification and eliminates the need for piezo sensors that have a short life and require frequent maintenance. The system tracks the health condition of loop sensors and sends automatic alerts when sensor starts to fail.

Better signal Control

Since the system is capable of classifying and collecting vehicle level data rather than aggregated data, it can improve the signal control by extending the green time as necessary based on the class of vehicle, especially heavy trucks, to achieve better intersection safety.

Emission Estimation

The environmental protection agency, as well as federal and state agencies, have the need to obtain vehicle classification information and VMT by vehicle class and speed bin in order to accurately estimate Greenhouse Gas and criteria pollutants using their emission models such as MOVES and EMFAC.
